Wheel Excavator
Language
Wheeled excavators are used in airports, ports, oil fields, mines, urban and rural construction, farmland and water conservancy and other operation occasions with their distinctive characteristics of fast walking speed, flexible and rapid transfer and rapid replacement of a variety of operation devices. They are known as “good helpers” in the construction field.
Length：6380mm
Height：2827mm
Weight：6600kg
Bucket Capacity：0.30m³
Engine rated power：55/2500kw/rpm
 |
 |  |
 |  |

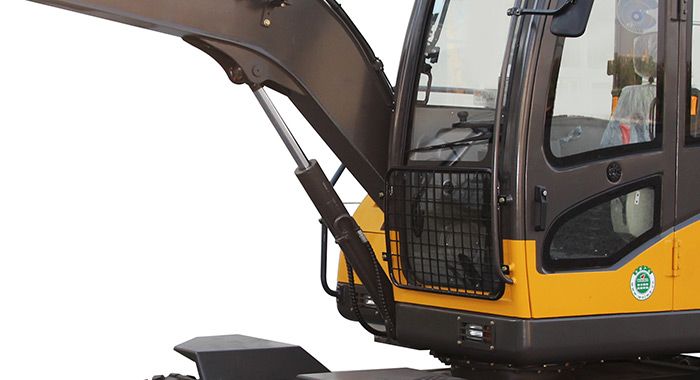

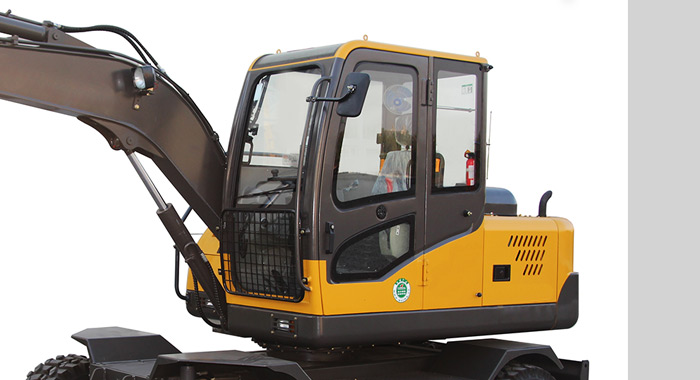

CabDesigned according to the principles of engineering, the concept of comfort, wide vision, spacious and bright, user-friendly front gear mechanism, equipped with adjustable suspension seats, silicone oil shock absorption, comfortable driving environment. |  |

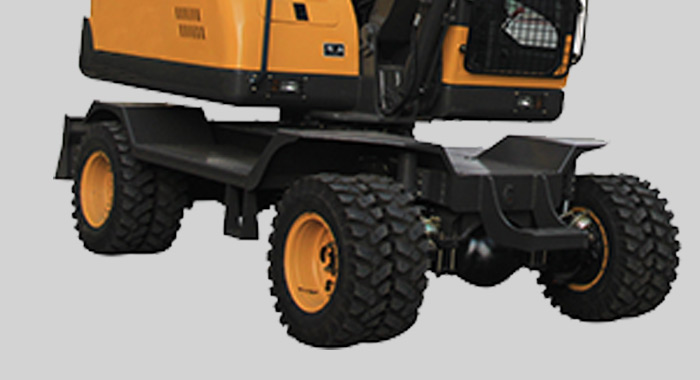

 | Off-road TiresOff-road anti-skid tires, with deeper texture, strong grip, not afraid of terrain. |
Hydraulic SystemWell-known brand multi-way valve and advanced rotary reducer, fast action, sufficient strength, good coordination of compound action, high reliability and long service life. |  |
| MODEL | KV80 |
| WEIGHT | |
| Total weight | 6600kg |
| SIZE | |
| Bucket capacity | 0.30m³ |
| total length | 6380mm |
| total transport height | 2827mm |
| Vehicle width | 2150mm |
| Total Weight | 6600kg |
| Platform turning radius | 2084mm |
| Maximum excavation height | 6300mm |
| Maximum unloading height | 4750mm |
| Max. digging depth | 3500mm |
| Maximum digging radius | 6230mm |
| ground clearance | 217mm |
| Minimum radius of gyration | 2084mm |
| Boom length | 3260mm |
| DRIVE | |
| Engine maximum torque | 269/1610N.m/rpm |
| engine power | 55/2500kw/rpm |
| hydraulic system pressure | 20MPa |
| WALKING CHARACTERISTICS | |
| Working device mode | Back Hole |
| Walking speed | 30km/h |
